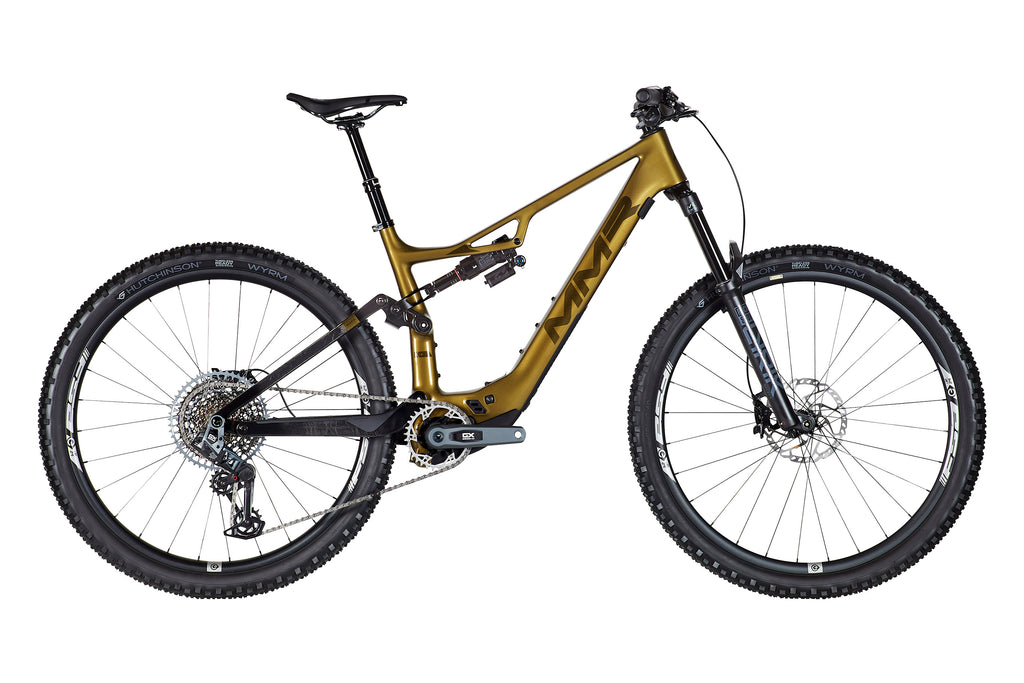

(New) Kaizen LT 150

Color
Size size guide
Model specifications
6.999 €
6.999 €
Store locator

Dare to make a difference.

(New) Kaizen LT is a reality.

Kaizen LT is exclusivity on two wheels. It is feeling the terrain, enjoying the trails and a characteristic lightness so as not to penalize you on the climbs.

A carbon frame and a low weight are what make the Kaizen the most desirable lightweight e-bike for MTB. A build by Sram, with the 12-speed GX Eagle and 150 mm travel Rock Shox suspensions, deliver the final blow for this exclusive model.

The Performance Line SX motor, Bosch’s lightest and sportiest, with a 400 Wh battery and just 2 kg of weight, considerably improves handling compared to versions where the batteries double the weight and penalise the rider’s initiative and the bike’s agility.

(New) Kaizen MMR. Light ebike Bosch Perfomance Line SX

Smart System

Discover

It is on the descents where we will enjoy and squeeze its 150 mm of front and rear travel, a fully progressive leverage ratio curve, the powerful braking provided by the 4-piston brakes and its 2.4” tires, providing the desired safety, grip and absorption.

The option of a 250 Wh extender will allow you to significantly increase the range of autonomy with only an added weight of approximately 1.6kg. And even with this auxiliary battery, you will still have a free bottle cage on the main triangle.

* Recommended retail price.

** MMR reserves the right to modify, without prior notice, the product information shown here, including price, components, technical specifications, colors and materials.

Choose the assembly
Model 10
Model 10

FRAME

Kaizen – G2 Carbon Concept Frame. Intermediate modulus carbon fiber. Several molds. TA 12 mm. Intenal Cable Routing. Boost. Post Mount. Full integrated battery. Head Tube 1.5.

FORK

Rock Shox Lyrik 150 mm

SHOCK

Rock Shox Super Deluxe Select+

SHIFTER

Sram GX Eagle AXS 12 s

LEVERS

Sram GX Eagle AXS

BRAKES

Shimano XT M8120

CRANKSET

Sram GX Eagle 34T

CASSETTE

Sram GX XS-1275 10-52

CHAIN

Sram GX Eagle

WHEELS

FSA Alloy Commet i30

TYRES

Hutchinson Wyrm TLR 2.4

STEM

Race Face Ride 35

HANDLEBAR

Race Face Turbine R35 800

SEATPOST

Race Face Affect R

SADDLE

San Marco GND Dynamic

ENGINE

Bosch Performance Line SX

BATTERY

Bosch CompactTube 400Wh

DISPLAY

Bosch Purion 200

(OPTIONAL) RANGE EXTENDER

Bosch PowerMore 250Wh

Added bike!
Add at least one other bike to compare
10 Compare
Geometry and sizes

G2 performance GEOMETRIES

Morphological and ergonomic studies are the basis for the design of our geometries. In the G2, we sought a posture that helps the user to be competitive while riding comfortably for many hours on the saddle.

(New) Kaizen LT 150
(New) Kaizen LT 150
(New) Kaizen LT 150
(New) Kaizen LT 150
(New) Kaizen LT 150
(New) Kaizen LT 150
(New) Kaizen LT 150
(New) Kaizen LT 150
(New) Kaizen LT 150
(New) Kaizen LT 150
(New) Kaizen LT 150
(New) Kaizen LT 150
(New) Kaizen LT 150
(New) Kaizen LT 150
(New) Kaizen LT 150
(New) Kaizen LT 150
(New) Kaizen LT 150
(New) Kaizen LT 150
S M L
S M L
L INSEAM (CM) <82 81-88 >87
HEIGHT (CM) <172 170-182 >180
L WHEELBASE (A) 1184 1221 1275
L TOP TUBE (B) 574 599 633
L VIRTUAL TUBE (C) 591 624 671
L HEAD TUBE (D) 100 117 140
L CENTRE/CENTRE (E) - - -
L SEAT/TUBE (F) 406 457 508
L CHAINSTAY (G) 455 455 455
L TRAIL (H) 44 44 44
BB DROP (I) 32 32 32
SS HEAD ANGLE (J) 65,5º 65,5º 65,5º
SEAT ANGLE (K) 75º 75º 75º
REACH (L) 420 450 491
STACK (M) 611 627 648
TRAIL (N) 117 117 117
L STEM (O) 50 50 50
L CRANK (P) 165 165 165
