X-Grip

Color
Model specifications
Size size guide
From 2.099 €
From 2.099 €
Store locator

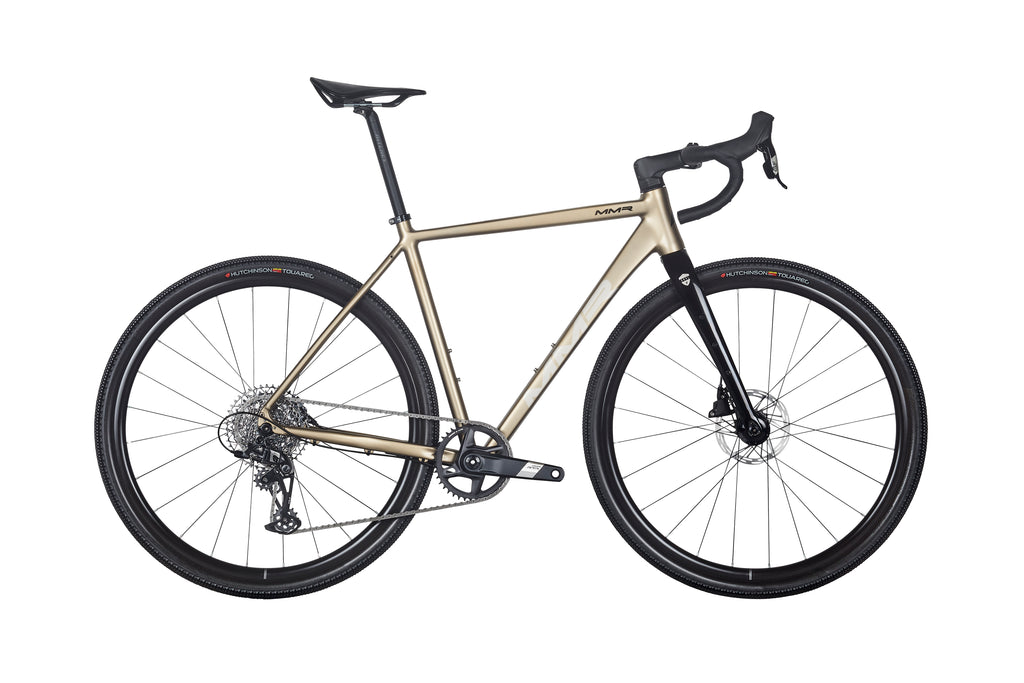

New X-Grip gravel 2024 from MMR.

New X-Grip now available. Model 00 with Sram Apex XPLR 12s rear derailleur. Model 10 with Shimano GRX RX820 12s rear derailleur.

Designed and engineered so you can focus on what really matters: the ride. Hydroformed 6061 aluminium frame and carbon fork. Hidden cables with full integration and polished welds for a clean look.

Enjoy the essence of gravel... ride mountains and tracks until the sun goes down, travel with your friends, get lost on trails, discover new routes...

The G1 design philosophy gives this bike enough agility to enjoy speed and a comfortable pedaling position to take you far away the noise of the city.

Beautiful, spectacularly equipped and conceived for you to design your own route away from the tarmac.

With the new X-Grip, you are the only one who sets the limits.

For the more adventurous and bikepacking enthusiasts, fit up to 42 mm tyres.
X-Grip has 6 fork mounts and additional ones on the chainstays for luggage rack and mudguards.

* Suggested retail price.

** MMR reserves the right, at any time, to update or modify the information on this website, including bike specifications, features, prices and colors without prior notice.

Choose the assembly
Model 00Model 10
Model 00

FRAME

X-Grip - G1 AC Concept Frame. Aluminium 6061. Hydroformed. Triple Butted. TA 12mm. Optimized Cable Routing. Flat Mount. Headtube 1.5 mm

FORK

X-Grip - G1 Carbon Concept Fork. TA 12mm

SHIFTER

Sram Apex XPLR 12V

BRAKES

Sram Apex 1 140

CRANKSET

Sram Apex1 40T DUB WIDE

CASSETTE

Sram PG-1231 XPLR 11/44 12V

CHAIN

Sram Apex D1 12V

WHEELS

Mavic Allroad 1

TYRES

Hutchinson Touareg 40mm

STEM

Ritchey Switch Comp

HANDLEBAR

Ritchey Butano Comp

SEATPOST

Ritchey Logic

SADDLE

Selle Italia X3 Boost Flow

Added bike!
Add at least one other bike to compare
Model 10

FRAME

X-Grip - G1 AC Concept Frame. Aluminium 6061. Hydroformed. Triple Butted. TA 12mm. Optimized Cable Routing. Flat Mount. Headtube 1.5 mm

FORK

X-Grip - G1 Carbon Concept Fork. TA 12mm

SHIFTER

Shimano GRX RX820 12V

BRAKES

Shimano GRX RX610 160mm

CRANKSET

Shimano GRX RX610 46/30T 12V

CASSETTE

Shimano 105 R7100 11/36T 12V

CHAIN

Shimano Deore M6100 12V

WHEELS

Shimano RS-171 DB CL HG

TYRES

Hutchinson Touareg 40mm

STEM

Ritchey Switch Comp

HANDLEBAR

Ritchey Butano Comp

SEATPOST

Ritchey Logic

SADDLE

Selle Italia X3 Boost Flow

Added bike!
Add at least one other bike to compare
00 Compare
Geometry and sizes

G1 ENDURANCE GEOMETRIES

Designed for those long rides where you lose count of all the hours you've been in the saddle. A geometry designed for comfort while riding more upright compared to other geometries where your body has to be more efficient in the wind.

With a shorter Reach and a higher stack, it is designed for those users where going further is the goal.

X-Grip
X-Grip
X-Grip
X-Grip
X-Grip
X-Grip
X-Grip
X-Grip
X-Grip
X-Grip
X-Grip
X-Grip
X-Grip
X-Grip
X-Grip
X-Grip
S M L XL
S M L XL
Inseam (cm) <77 76-84 83-88 >87
Height (cm) <170 169-175 173-184 >183
L Wheelbase (A) 998 1007 1025 1047
L Top Tube (B) 500 522 544 565
L Virtual Tube (C) 519 542 565 586
L Head Tube (D) 110 135 160 195
L CENTRE/CENTRE (E) 445 485 515 555
L SEAT/TUBE (F) 490 530 560 600
L CHAINSTAY (G) 430 430 430 430
L TRAIL (H) 45 45 45 45
BB DROP (I) 70 70 70 70
SS HEAD ANGLE (J) 71º 72º 72º 72º
SEAT ANGLE (K) 74º 73.5º 73º 73º
REACH (L) 365 375 385 396
STACK (M) 538 565 589 622
TRAIL (N) 74 68 68 68
