Performance Line CX Smart System motor with up to 340% pedal assist and 85Nm maximum torque for a unique experience on technical and demanding climbs.

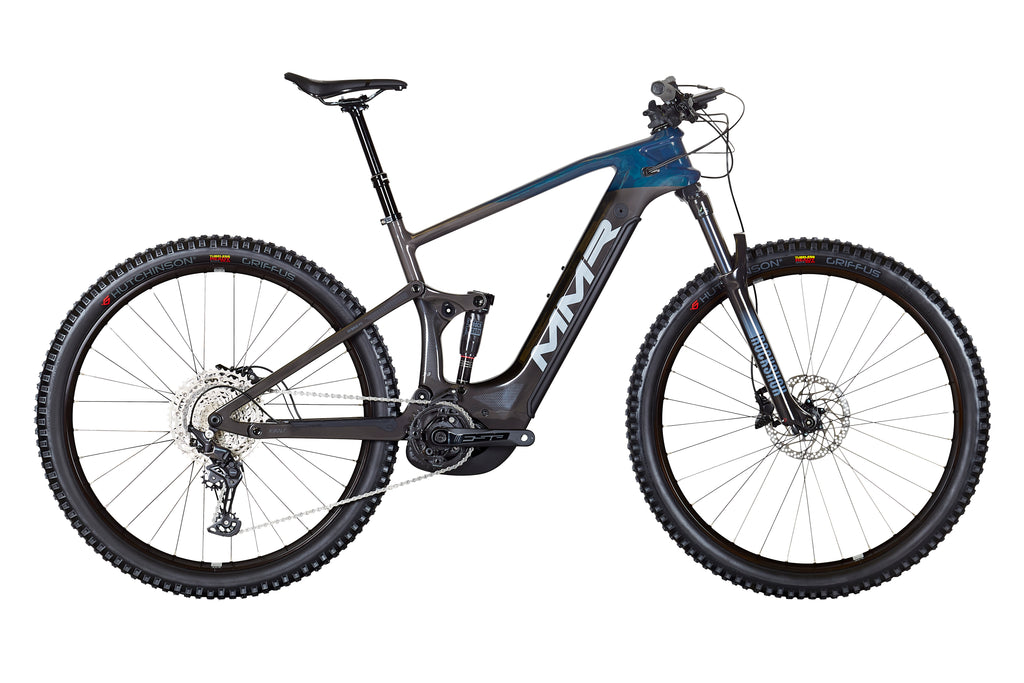

Limits are there to be broken. Our new X-BOLT 2024 is more energetic, more capable and sets the bar even higher to go places you've never gone before. Robust and agile on even the most technical trails.
120mm of fork travel, as on the rear shock. 4-bar rear suspension with a single point of articulation in the chainstays ensures great sensitivity and independence of braking and acceleration forces.
In combination with its integrated, compact and lighter Bosch PowerTube 625Wh battery, which can be optionally supplemented with the Bosch 250Wh extender.
Internal cable routing with entry to the frame at the front of the down tube.
Welcome to the limits
of the unknown
* Recommended retail price.
** MMR reserves the right to modify, without prior notice, the product information shown here, including price, components, technical specifications, colours and materials.
Compare
G2 PERFORMANCE GEOMETRIES
Morphological and ergonomic studies are the basis for the design of our geometries. In the G2, we look for a posture that helps the user to be competitive while riding comfortably for many hours in the saddle.
| S | M | L | ||||
|---|---|---|---|---|---|---|
| Inseam (cm) | <82 | 81-88 | >87 | |||
| Height (cm) | <172 | 170-182 | >180 | |||
| L Wheelbase (A) | 1191 | 1222 | 1253 | |||
| L Top Tube (B) | 584 | 603 | 626 | |||
| L Virtual Tube (C) | 590 | 618 | 647 | |||
| L Head Tube (D) | 110 | 125 | 140 | |||
| L CENTRE/CENTRE (E) | - | - | - | |||
| L SEAT/TUBE (F) | 406 | 457 | 508 | |||
| L CHAINSTAY (G) | 457 | 457 | 457 | |||
| L TRAIL (H) | 51 | 51 | 51 | |||
| BB DROP (I) | 30 | 30 | 30 | |||
| SS HEAD ANGLE (J) | 66.5º | 66.5º | 66.5º | |||
| SEAT ANGLE (K) | 75º | 75º | 75º | |||
| REACH (L) | 425 | 450 | 475 | |||
| STACK (M) | 616 | 629 | 643 | |||
| TRAIL (N) | 106 | 106 | 106 |
